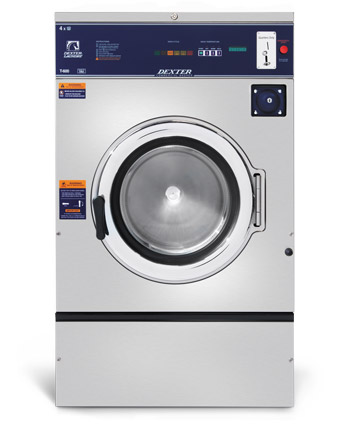

T-400

30 lb. Commercial Washer

  • Dry Weight Capacity:30 pounds (13.61 kg)
  • Cabinet Height:48.25 inches (122.6 cm)
  • Cabinet Width:29.90 inches (75.9 cm)
  • Overall Depth:27.38 inches (69.5 cm)

The Dexter T-400 commercial washer has a dry weight capacity of 30 pounds (13.6 kg). It is available in traditional Dexter blue or black graphics, and all Dexter washers offer an industry-leading 10-year warranty with lifetime technical support.

Product Features

Dexter commercial washers are designed, tested and manufactured to ensure superior performance.

RELIABLE DESIGN

  • Heavy-duty bearings in a cast iron bearing housing
  • Welded steel spider and shaft
  • AISI 304 stainless steel top, front and side panels
  • Fits through a standard 36” doorway
  • Sump-less outer tub design saves water on every cycle
  • 10 year washer warranty on the frame, tub, cylinder, shaft, seals,bearings & bearing housing
  • 3 year parts warranty

PERFORMANCE FEATURES

  • 100 g force extraction
  • Perforated cylinders and raised baffles for superior wash action
  • Easy to modify cycle times, temperatures and programming
  • Generate more revenue through extended cycle and temperature options
  • Energy efficient inverter drive technology
  • Rugged frame design proven for over two decades
  • All Dexter washer designs pass 1000 hour out of balance test

OPTIONS

  • Blue or black graphics
  • Available coin operated or debit card ready

Machine Specifications

For full specifications on the T-400 30 lb. Commercial Washer, please look below.

Dimensions / CapacityStandardMetric
Dry Weight Capacity30 lb(13.6 kg)
Cabinet Height48.25”(122.6 cm)
Cabinet Width29.9”(75.9 cm)
Overall Depth27.38”(69.5 cm)
Door Opening15.25”(38.7 cm)
Cylinder Diameter25.0”(63.5 cm)
Cylinder Depth14.1”(35.9 cm)
Cylinder Volume4.0 cu.ft.(113.4 l)
Floor to Door Bottom16.0”(40.6 cm)
Speeds G-Force (RPM)
High Speed Extract100 G(532 RPM)
Intermed. Extract Speed60 G(412 RPM)
Washing Speed.9 G(50 RPM)
Motor Size2 HP(1.5 KW)
Net Weight - lb (kg)433 lbs(196.4 kg)
Shipping DimensionsStandardMetric
Shipping Weight456 lbs(206.8 kg)
Height - in (cm)53.5”(136.5 cm)
Width - in (cm)31.5”(80.0 cm)
Depth - in (cm)33.5”(85.1 cm)
WaterStandardMetric
Water inlet Size3/4”(19 mm)
Flow Rate (per min)9 gal(34.1 L)
Pressure (min/max)30-120 psi(207-827 Kpa)
Approx. Water Usage32.0 gal(121.1 l)
Drain Diameter (O.D.)3.0”(7.6 cm)
Floor to Center of Drain5.0”(12.7 cm)
Electrical / Circuit Breaker / Running Amps / Wire SizeStandardMetric
-12 (208-240/60/1 - 2 wire + ground)15 amp / 6.2 amp / #12
-12 (208-240/60/3 - 3 wire + ground)15 amp / 6.2 amp / #12
-59 (230/50/1 - 2 wire + ground)15 amp / 6.2 amp / 3.5 mm2
Installation RecommendationsStandardMetric
Clearance Between Machines1/2” (min)(1.3 cm)
Clearance Behind Machines24” (min)(61.0 cm)
Concrete Thickness6” (min)(15.2 cm)
Approvals**UL / CE

** Agency approvals may vary depending on configuration. Consult factory for details. For the most accurate information, please consult machine installation guide for all design and construction purposes. Due to continuous product improvements, design and specifications subject to change.

Product Manuals & Resources

Here you can download the complete owner’s manual, as well as product dimensions, instructions and maintenance tips for the T-400 30 lb. Commercial Washer.
