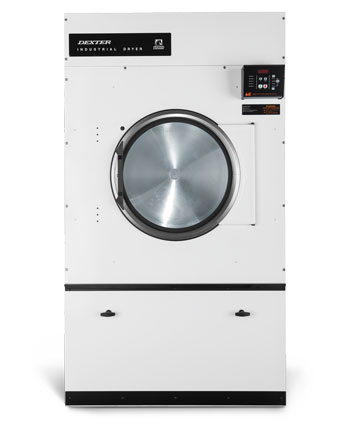

T-120 Express 120 lb C-Series On-premise Dryer

  • Dry Weight Capacity120 pounds (54.4 kg)
  • Cabinet Height85 5/16 inches (216.7 cm)
  • Cabinet Width46 3/4 inches (118.7 cm)
  • Cabinet Depth60 3/16 inches (152.9 cm)

Product Description

Dexter on-premise dryers are engineered to show up for work in even the harshest laundry environments. Featuring flexible controls and high quality materials, these fast and efficient dryers are designed to help you process laundry faster and more efficiently.

When your business depends on clean laundry, choosing the right equipment is an important decision. Our products will provide you the efficiency, flexibility, performance, and durability you need to be confident in your choice. With lifetime technical support and an industry leading 5 year limited warranty, you can be confident that we will stand behind every dryer you invest in.



Product Features

EFFICIENT

Perforated tumblers and balanced radial airflow provide maximum efficiency.

The anti-wrinkle feature offers an intermittent tumble to keep laundry wrinkle free.

DURABLE

With heavy-duty bearings in a cast iron bearing housing and a fully welded and painted cabinet, Dexter dryers are built to last.

Using proven washer-style technology, welded steel spider assemblies support the tumbler from the rear and eliminate the need for front support rollers.

Welded in tumbler baffles are strong and stable while providing great tumbling action.

RELIABLE

Our industry leading 5 year warranty covers the trunnion, bearings, and bearing housing.

A 3 year parts warranty covers the rest.

We stand behind every machine you invest in with lifetime technical support.

FLEXIBLE

The reversible door option on all on-premise single dryers allows for a more ergonomic set up when needed.

This dryer features a reversing tumbler to prevent roping, which sometimes occurs with large linens.

Dexter on-premise dryer controls offer adjustable settings and five customizable cycles that provide the power and flexibility needed to fit any laundry.

INSTALLATION

A next generation variable frequency drive allows you to power this unit with standard single phase, 120 volt, power. It also lowers electrical usage, improves performance, and extends the life of the motor.

The top panels and burner housing on this dryer can be easily removed and reassembled for installation in areas with low overhead clearance.

To allow for easy installation, both 10” and 12” exhaust ducts can be used with this model.

The hinged lower service door makes cleaning the lint screen quick and easy.

OPTIONS

Dexter single dryers are available in 30lb, 50lb, 80lb, and 120lb capacities.



Machine Specifications

For full specifications on the T-120 Express 120 lb C-Series On-premise Dryer, please look below.

StandardMetric
Capacity
Dry Weight Capacity120 lb(54.4 kg)
Cylinder Volume36.1 cu ft(1022.2 L)
Speed
Tumbler Speed36.5 RPM
Motor Size - 60 Hz Model1 hp & 1hp(0.75 kW & 0.75 kW)
Motor Size - 50 Hz Model1 hp & 0.75 hp(0.75 kW & 0.56 kW)
Airflow
60Hz Model - 12" Outlet1450 cfm(41.1 M3/min)
60Hz Model - 10" Outlet1250 cfm(35.4 M3/min)
50Hz Model - 10" or 12" Outlet1000 cfm(28.3 M3/min)
Dimensions
Cabinet Height85 5/16"(216.7 cm)
Cabinet Width46 3/4"(118.7 cm)
Overall Depth60 3/16’’(152.9 cm)
Door Opening25 5/8”(65.1 cm)
Floor to Door Bottom37”(94 cm)
Cylinder Diameter43”(109.2 cm)
Cylinder Depth43”(109.2 cm)
Lint Screen Area862 sq in(5561 sq cm)
Weight
Net Weight1075 lbs(487.6 kg)
Shipping Information
Shipping Weight1122 lbs(508.9 kg)
Shipping Height88 3/8"(224.5 cm)
Shipping Width48 1/4”(122.6 cm)
Shipping Depth68 1/2”(174 cm)
Gas Requirements (Gas Models Only)
Gas Supply Connection3/4"(19.1 mm)
Natural Gas Supply (Water Column)5 - 10"(12.7 - 25.4 cm)
LP Gas Supply (Water Column)11 1/2 - 13 1/2”(29.2 - 34.3 cm)
Gas Usage (Gas Models Only)
60Hz Model320,000 BTU/hr (93.8 kW)
50Hz Model300,000 BTU/hr(87.9 kW)
Electrical Requirements
Gas
Model Volts / Hz / Phase / WiringCircuit Breaker / Running Amps / Wire Size
-10 120/60/1/2 wire + ground25 amp / 15 amp / #12
-39 230/50/1/2 wire + ground20 amp / 9.8 amp / 3.5 mm²
Installation Recommendations
Minimum Clearance Between Machines0"(0 cm)
Minimum Clearance Behind Machines18”(45.7 cm)
Make-Up Air Required2.25 sq ft(2090 sq cm)
Exhaust Size10" or 12"(25.4 or 30.5 cm)
Agency Approvals*
ETL / AGA

Due to continuous product improvements specifications are subject to change, please consult the installation manual for the most accurate information.
*Agency approvals may vary depending on the machine configuration, consult Dexter Laundry or your Dexter Authorized Distributor for details.

Product Manuals & Resources

Here you can download the complete owner’s manual, as well as product dimensions, instructions and maintenance tips for the T-120 Express 120 lb C-Series On-premise Dryer.
