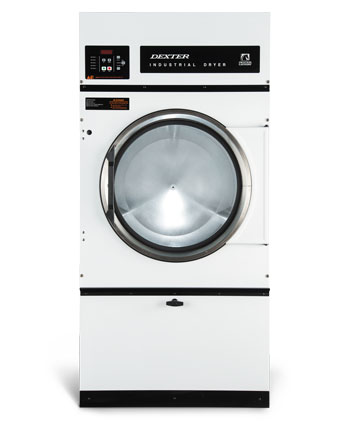

T-50 Express 50 lb C-Series On-premise Dryer

  • Dry Weight Capacity50 pounds (22.7 kg)
  • Cabinet Height72 1/4 inches (183.5 cm)
  • Cabinet Width34 1/2 inches (87.6 cm)
  • Cabinet DepthStandard: 48 inches (121.9 cm) Reversing: 50 inches (127 cm)

Product Description

Dexter on-premise dryers are engineered to show up for work in even the harshest laundry environments. Featuring flexible controls and high quality materials, these fast and efficient dryers are designed to help you process laundry faster and more efficiently.

When your business depends on clean laundry, choosing the right equipment is an important decision. Our products will provide you the efficiency, flexibility, performance, and durability you need to be confident in your choice. With lifetime technical support and an industry leading 5 year limited warranty, you can be confident that we will stand behind every dryer you invest in.



Product Features

EFFICIENT

Perforated tumblers, balanced radial airflow, and the right amount of air recirculation provide maximum efficiency.

The anti-wrinkle feature offers an intermittent tumble to keep laundry wrinkle free.

DURABLE

With heavy-duty bearings in a cast iron bearing housing and a fully welded and painted cabinet, Dexter dryers are built to last.

Using proven washer-style technology, welded steel spider assemblies support the tumbler from the rear and eliminate the need for front support rollers.

Formed in tumbler baffles are strong and stable while providing great tumbling action.

RELIABLE

Our industry leading 5 year warranty covers the trunnion, bearings, and bearing housing.

A 3 year parts warranty covers the rest.

We stand behind every machine you invest in with lifetime technical support.

FLEXIBLE

The reversible door option on all on-premise single dryers allows for a more ergonomic set up when needed.

Dexter on-premise dryer controls offer adjustable settings and five customizable cycles that provide the power and flexibility needed to fit any laundry.

INSTALLATION

Vertical exhaust and venting come standard on every dryer for easy installation.

The exhaust cleanouts are easy to reach and allow for regular maintenance.

The hinged lower service door makes cleaning the lint screen quick and easy.

OPTIONS

Available with stainless steel or galvanized tumblers and white or stainless steel panels.

Choose between gas models or electric models. Propane kits are available.

This dryer is available as a reversing or non-reversing model.

Dexter single dryers are available in 30lb, 50lb, 80lb, and 120lb capacities.





Machine Specifications

For full specifications on the T-50 Express 50 lb C-Series On-premise Dryer, please look below.

StandardMetric
Capacity
Dry Weight Capacity50 lb(22.7 kg)
Cylinder Volume 15.8 cu ft(447.4 L)
Speed
Tumbler Speed45 RPM
Motor Size - 60 Hz Model1 hp(0.75 kW)
Motor Size - 50 Hz Model0.75 hp(0.56 kW)
Motor Size - 60 Hz Reversing2 hp & 0.5 hp(1.5 kw & 0.38 kW)
Airflow
60Hz Model910 cfm(25.8 M3/min)
50Hz Model760 cfm(21.5 M3/min)
Dimensions
Cabinet Height72 1/4”(183.5 cm)
Cabinet Width34 1/2”(87.6 cm)
Cabinet Depth - Standard48’’(121.9 cm)
Cabinet Depth - Reversing50”(127 cm)
Door Opening25 5/8”(65.1 cm)
Floor to Door Bottom27 1/4”(69.2 cm)
Cylinder Diameter36 1/2”(92.7 cm)
Cylinder Depth33”(83.8 cm)
Lint Screen Area708 sq in(4568 sq cm)
Weight
Net Weight - Standard540 lbs(244.9 kg)
Net Weight - Reversing590 lbs(267.6 kg)
Shipping Information
Shipping Weight - Standard590 lbs(267.6 kg)
Shipping Weight - Reversing620 lbs(281.2 kg)
Shipping Height77 1/4”(196.2 cm)
Shipping Width36”(91.4 cm)
Shipping Depth - Standard51 1/2”(130.8 cm)
Shipping Depth - Reversing53 1/2”(135.9 cm)
Gas Requirements (Gas Models Only)
Gas Supply Connection1/2”(12.7 mm)
Natural Gas Supply (Water Column)5-10”(12.7 - 25.4 cm)
LP Gas Supply (Water Column)11 1/2 - 13 1/2”(29.2 - 34.3 cm)
Gas Usage (Gas Models Only)
60Hz Model145,000 BTU/hr(42.5 kW)
50Hz Model120,000 BTU/hr(35.2 kW)
Electrical Requirements
Gas Models
Model Volts / Hz / Phase / WiringCircuit Breaker / Running Amps / Wire Size
-10 120/60/1/2 wire + ground15amp/9.6amp/#12
-11 208-240/60/1/2 wire + ground15amp/5.1amp/#12
-39 230/50/1/2 wire + ground10amp/5.1amp/2.1mm2
-59 230/50/1/2 wire + ground10amp/5.1amp/2.1mm2
Electric Models
Model kW / Volts / Hz / Phase / WiringCircuit Breaker / Running Amps / Wire Size
-71 24/208/60/3/4 wire + ground90amp/85amp/#2
-72 30/208/60/3/4 wire + ground100amp/100amp/#1
-74 24/240/60/3/4 wire + ground80amp/75amp/#3
-75 30/240/60/3/4 wire + ground90amp/90amp / #2
-79 24/400/50/3/4 wire + ground50amp/45amp / 13.3 mm2
Installation Recommendations
Minimum Clearance Between Machines0”(0 cm)
Minimum Clearance Behind Machines18”(45.7 cm)
Make-Up Air Req. (per dryer)1.25 sq ft(1161 sq cm)
Exhaust Size8”(20.3 cm)
Agency Approvals*
ETL / AGA / CE

Due to continuous product improvements specifications are subject to change, please consult the installation manual for the most accurate information.
*Agency approvals may vary depending on the machine configuration, consult Dexter Laundry or your Dexter Authorized Distributor for details.
